Two small decisions shape how safe and convenient an auto cover is to live with: where the switch goes and which side the motor sits on. Both get settled during design, and both are hard to change later. Getting the automatic pool cover switch location right comes down to one idea. The person operating the cover has to be able to see the entire pool.
Automatic Pool Cover Switch Location: Where Should It Go?

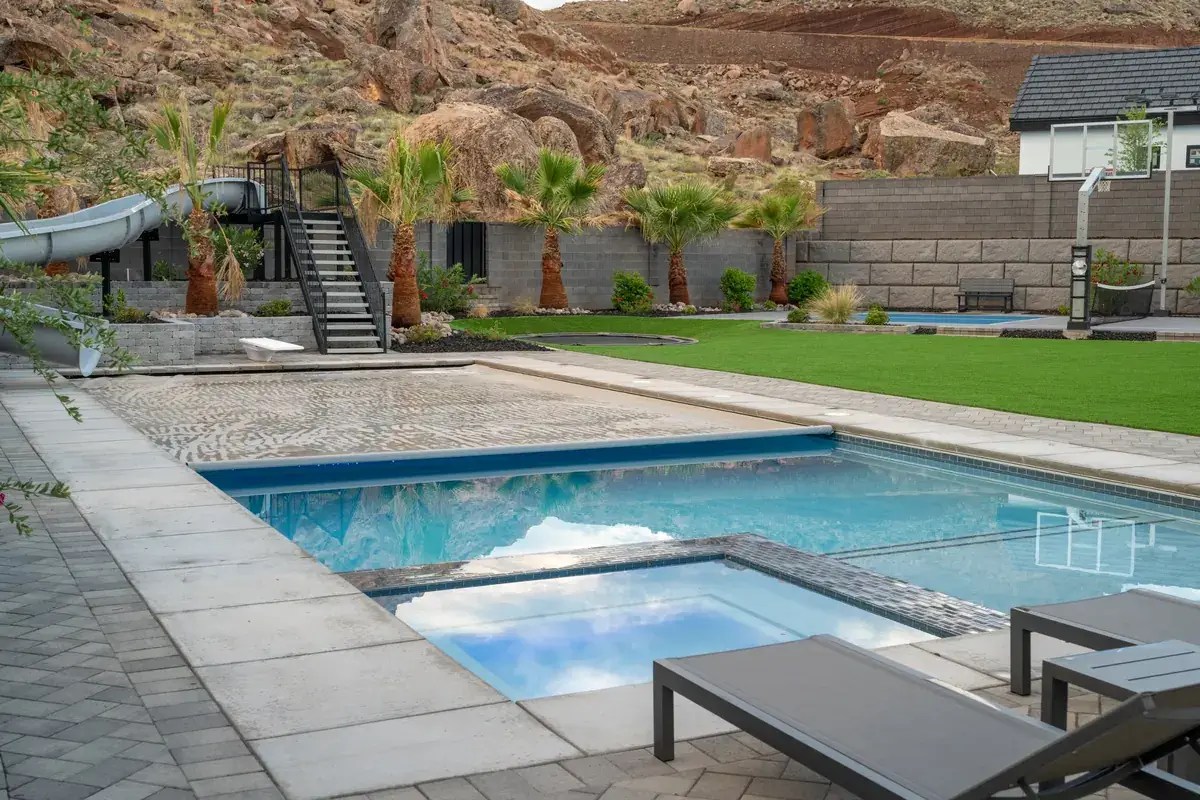

The switch must be placed where the operator can see the entire surface of the pool. It works best near the cover housing end of the pool, no more than 30 feet from the pool, and never inside the house unless the pool is indoors.
Safety and reliability come first, convenience second. The switch should be easy to reach for daily use, but never at the expense of seeing the water. Before every open or close, the operator should check visually that the cover is working properly and the pool is clear.
The Switch Location Rules
- Full view of the pool. The operator must be able to see the entire pool surface from the switch.
- Near the cover housing end. Standing here gives the clearest view down the length of the cover.
- Within 30 feet. It’s recommended that the switch be no more than 30 feet from the pool.
- Not inside the home. The switch should never be placed inside the house or another building. The only exception is an indoor pool, where the switch must be in the same room as the pool.
Good Places to Mount the Switch
Coverstar’s planning diagram shows a switch zone across the cover housing end of the pool, with typical mounting spots such as:
- A house wall near the door to the pool area
- A fence post
- A post at the edge of the deck
- A house corner
Any of these works as long as the operator still sees the whole pool from that spot.
Control Switch Options
| Control | How it works | Notes |
|---|---|---|
| Standard toggle | Keyed switch in a weatherproof box | Not available for CS300HD Spa |
| Rocker switch | Keyed rocker switch | Not available for CS300HD Spa |
| Touch screen | Passcode keypad | Multiple screens can control one cover; text or email safety alerts on home Wi-Fi |
Key Switches
The standard toggle and the rocker switch both use a key. That keeps the cover from being opened by a child or a guest who shouldn’t be in the pool.
Touch Screen
The touch screen uses a passcode instead of a key. You can connect multiple touch screens to control one cover, which helps on large properties. When it’s connected to your home wireless network, it can also send safety alerts by text or email. The same rule still applies: every touch screen should be placed where the whole pool is visible.
If you have a CS300HD spa mechanism, the toggle and rocker switches aren’t available, so plan on the touch screen.

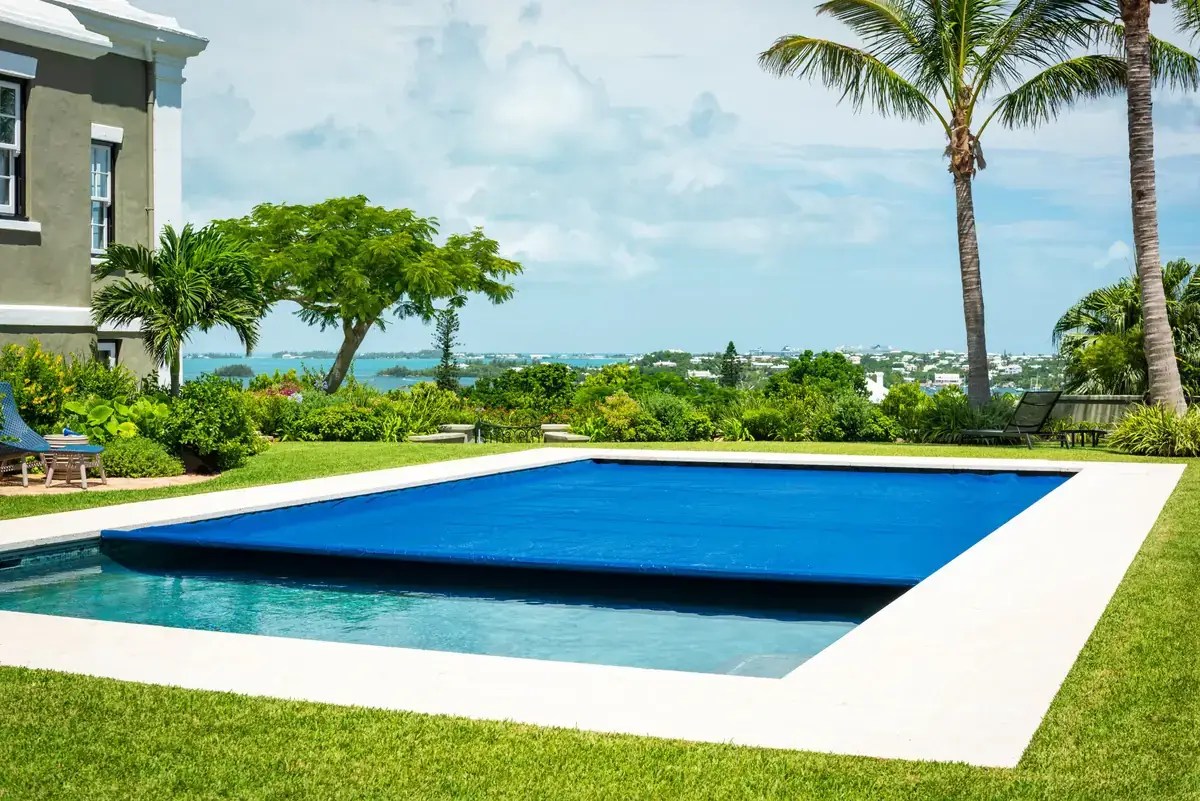

Choosing the Motor Side
The motor side is either “Left” or “Right.” You find it by standing directly behind the cover housing and facing the pool.
Why It Matters
The housing for the mechanism extends 36 inches from the water’s edge on the motor side. On the non-motor side, it extends only 12 inches. That extra space on the motor side affects deck layout and walking paths.
What to Consider
For most systems, the main factors are:
- Deck layout
- Pool entry and exit points, like steps, ladders, and gates
- Expected foot traffic
Deckmount mechanisms and recessed mechanisms with aluminum lids should have foot traffic directed away from the motor side. Put the main walking path on the non-motor side.
Systems with stone walk-on lids aren’t affected by foot traffic, since the lid is built to be walked on. For those, the deciding factors are usually deck layout, property line easements, and electrical routing.
Line Up the Switch, Motor, and Wiring
The motor needs power and the switch needs a wire to the mechanism. Choosing a motor side close to your electrical source and a switch spot on the housing end keeps wire runs short and simple. Settle all three together during installation planning.
A Practical Tip for Northeast Homes
Many homes in Delaware, New Jersey, New York, and Pennsylvania have a back door that opens onto the deck, so the house wall seems like the obvious automatic pool cover switch location. It’s a good one only if that wall sits within 30 feet and you can see the whole pool from it. If a corner of the pool is hidden behind a fence or landscaping, move the switch to a post at the deck edge instead.
Frequently Asked Questions
Where should an automatic pool cover switch be located?
Somewhere the operator can see the entire pool surface, ideally near the cover housing end and no more than 30 feet from the pool.
Can the pool cover switch be inside the house?
No, unless it’s an indoor pool. For indoor pools, the switch must be in the same room as the pool.
What is the motor side on an automatic pool cover?
It’s the side where the mechanism and motor sit, labeled left or right when you stand behind the cover housing facing the pool. The housing extends 36 inches from the water on that side.
Can an automatic pool cover send alerts to my phone?
Yes. The touch screen control can send safety alerts by text or email when it’s connected to your home wireless network.
Can I have more than one switch for my pool cover?
With the touch screen option, multiple touch screens can be connected to control one cover. Each should still have a full view of the pool.
